Service Group 32 - Suspension
Used at front, lower control arms (in conjunction with Electronic Level Gauge: WR 300, see the next item) to measure vehicle ride height per the M-B alignment procedure.
Digital Angle Gauge
Used in conjunction with item 900 589 03 21 00.

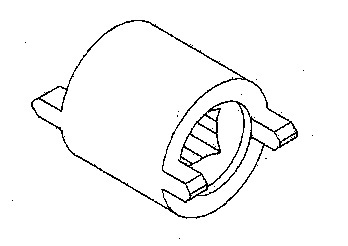

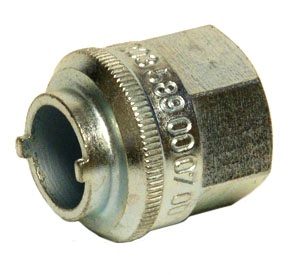

Pin Wrench Insert, Airmatic
This socket is used on the top nut of the airmatic suspension strut, the socket is a 22mm hexagon.
This socket is used to loosen and tighten the brass fitting in the top of the front airmatic strut. Note: this is a double sided tool to accommodate the 2 size fitting which may be encountered in production vehicles.

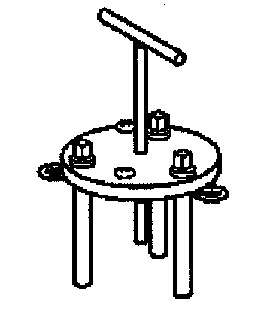

Strut Bearing Tool, Airmatic
Used in removal and installation of the snap ring on the cover of head bearing, front axle air suspension struts.

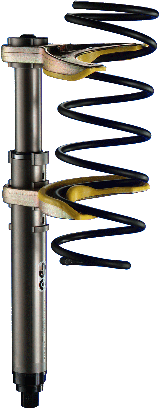

Use for front suspension on the 220 chassis.

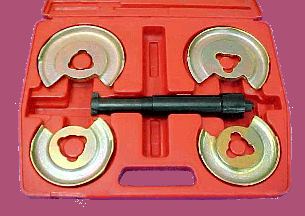

Use for rear suspension on the 220 chassis.
