Service Group 54 - Electrical System: Equip. & Inst.

live_draw_tool
$50.00 $25.00 On Sale!
LIVE DRAW TOOL
The live draw tool is used with a DVOM to take current
measurements without loss of memory and settings in the various
control units.

When used with the MS 4000 memory saver, see the next item in this group,
the Live Draw Tool can be attached to the battery and testing can be done
immediately without the need to resynchronize and drive the vehicle to re-create the fault.




$195.00

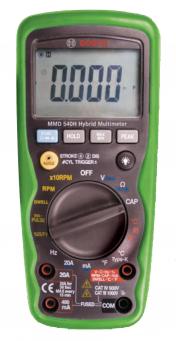

MMD 540H

The Bosch MMD 540H Hybrid multimeter is a CAT III safety rated, auto ranging digital multimeter
designed for automotive diagnostics and electrical troubleshooting.
Whether your shop services automotive, fleet, motorcycle, marine or small engine,
the MMD 540H has the capability to keep up with your business.

Qty

$125.00

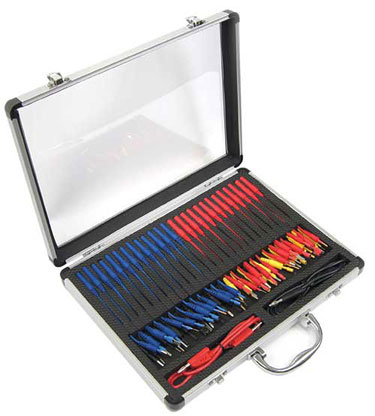

ES 146

This comprehensive test kit features a variety of terminal adapter sets which enable connection to
most automotive vehicle connectors, both foreign and domestic.
Terminal adapters connect via the included 48 inch stacking banana plug test leads.
Connection to most DMMís and scopes is no problem.
Kit is designed to provide wide testing coverage and quicken the test process.


Includes:

2.7mm Female Flat Terminal, 4 pieces
3.0mm Female Flat Terminal, 4 pieces
3.2mm Female Flat Terminal, 4 pieces
7.7mm Female Flat Terminal, 4 pieces
3.55mm Female Round Terminal, 4 pieces
2.2mm Male Round Terminal, 4 pieces
3.55mm Round Terminal, 4 pieces
1.0mm Male Flat Terminal, 4 pieces
1.5mm Male Flat Terminal, 4 pieces
1.8mm Male Flat Terminal, 4 pieces
2.2mm Male Flat Terminal, 4 pieces
2.8mm Male Flat Terminal, 4 pieces
4.8mm Male Flat Terminal, 4 pieces
48" Stacking Banana Plug Leads, 2 pieces;

Qty

$95.00

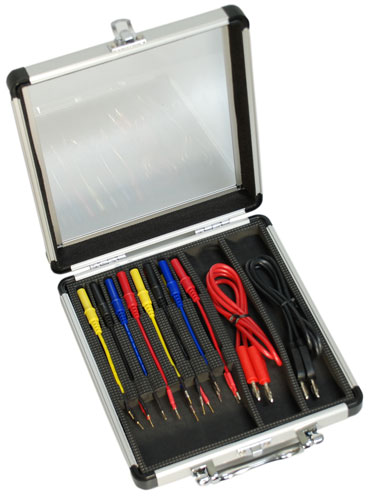

ES 147

Test connector kit featuring a variety of terminal adapter sets which enable connection to Micro64 terminals,
primarily found on GM vehicles and some EU/Asian/Domestic vehicles.
Adapters connect via the included 48 inch stacking banana plug test leads.
Connection to most DMMís and scopes is no problem.
Kit is designed to provide a quality & secure test connection while quickening the test process.


Includes:

Square Micro64 Terminal, Female - (4)
Square Micro64 Terminal, Male - (4)
Round Micro64 Terminal, Female -(4)
Round Micro64 Terminal, Male - (4)
48" Stacking Banana Plug Leads Ė (2)

Qty

$250.00

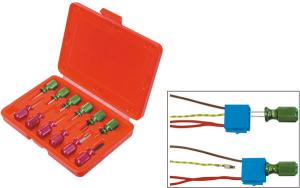

Klann Terminal Tool Set for push-on contacts.

This tool is used to release terminals from automotive plugs and socket connectors.

Click on the image or the item number for additional information.

Qty

$15.00
J-38125-11A
Pick Tool

Qty

$25.00

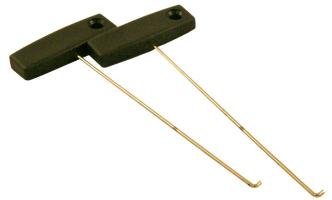

140 589 02 33 00
Hook Set, Instrument Cluster Removal, Longer Handle Pulling Hook Set (2 pieces) Application Group 46 Used to remove oil line clamp on power steering expansion reservoir. Application Group 54 Used to remove instrument cluster. Application Group 46/ 67/ 68/ 72/ 77/ 80/ 82/ 83/ 88/ 91 Used for various assembly operations, for removing clipped panels and covers.

Qty

$34.65
000 540 21 05
Wiring kit

Qty

$55.00

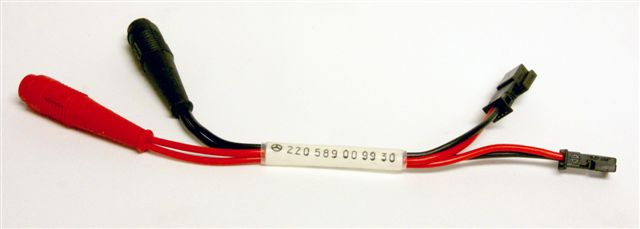

220 589 00 99 30
2-pin adapter cable for measuring voltage and resistance at engine compartment bus system.

Qty

$55.00

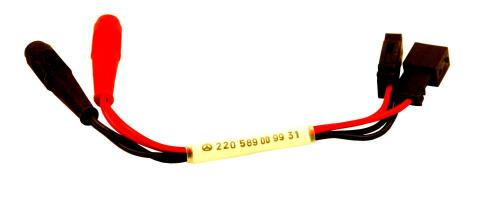

220 589 00 99 31
Connector 2-pin adapter cable for measuring voltage and resistance at engine compartment bus system. Interface = traction system control unit

Qty

$150.00

Terminal Tool Set for Push-On Contacts

Designed to release the terminals in plug and socket cable connections.
During the release procedure the tool forks are pushed onto the terminal release mechanism, releasing them from the connector. The terminals can then be extracted from the plug or socket.

Click on the picture or the part number for more information.




Qty

$20.00
140 589 12 21 00

Quiescent Current Test Adapter 1

This adapter is used for testing the quiescent current consumption of an electrical circuit.

Models: 129 as of 09/1995, 140, 163, 168, 170, 199, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240, 414



Qty

$20.00
140 589 13 21 00

Quiescent Current Test Adapter 2

This adapter is used for testing the quiescent current consumption of an electrical circuit (for Maxi flat pan fuses).

Models: 129 as of 09/1995, 140, 163, 168, 170, 199, 202, 203, 208, 209, 210, 211, 215, 220, 230, 240, 414



Qty

$95.00

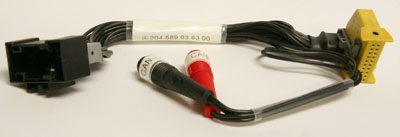

204 589 03 63 00

CAN Breakout Harness

Cable adapter, SAM to DVOM.


Qty
