BMW Special Tools

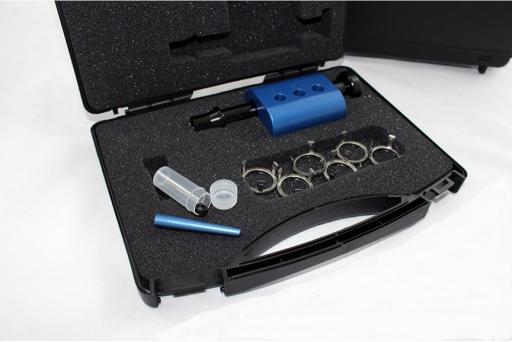

BMW Injector Tool

This is the only all in one solution on the market and is a must have for all owners of Direct Injected BMW vehicles.

This kit includes everything needed to remove the direct fuel injectors & replace their seals...
* Small slide hammer that fits into tight spaces and provides maximum removal force for removing injectors
     * Injector seal installation expansion tool which fits neatly inside the slide hammer
     * Seal Compression Dies machined directly into the handle
     * Plastic storage container for storing new seals neatly inside case
     * Die cut foam provides perfect spot for storing additional Decoupling Elements

The blue sleeve is a dial used to expand the seal.
Damage to the seal would occur if someone tried to force the seal on without this tool.
The unique handle has compression dies machined directly into it.
The injector gets pushed into these holes to compress the seals in three accurate steps.
Leave the injector in step 3 for 45 seconds to ensure the seal will remain compressed after the injector is removed.
Then quickly (under 1 minute) install the injector into the cylinder head.

No special seal removal tool is needed or required, simply take a pair of needle nose pliers and using the tip of the pliers squeeze the seal and remove it takes second and requires very little force.

Injectors, Seals, & Decoupling Elements are not included.



OTC  Battery Reset Tool

Do you replace car batteries for BMW or Mini Cooper? If yes, this is a MUST have tool.
Certain models require a scan tool to reset the battery life in the vehicle’s computer when an old battery is replaced.
Failure to do so may create an over charging situation, shorten the battery life and/or enable limp-home mode.

The OTC Battery Reset Tool has all you need to quickly and easily reset the battery life.
The  Battery Reset Tool has the latest software to work on today’s vehicles where a battery reset procedure is required.

For use with late model BMW & Mini Cooper vehicles.



Spark plug socket for the N54 engine.

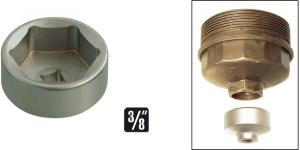

KL-0122-5 (ONLY 1 LEFT)

Oil Filter Key Size (waf) 36 mm

Applicable for Mercedes Diesel engines OM604, OM605, OM606, BMW 1 series, BMW engines M52(6 cyl), M60(8 cyl), M70(12 cyl).

This oil filter key is intended for the removal and installation of the oil filter cover when replacing the oil filter cartridge.



11 12 1 743 294 TOOL

Crankcase vent tool.

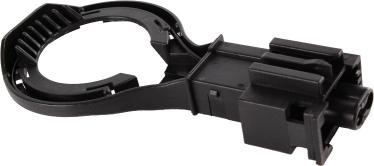

61 13 6 917 541

MOST bypass tool.


27 10 7 566 296 G

Transfer Case Actuator Motor Gear

This gear is located inside the actuator motor. Manufactured using a high temp nylon carbon fiber reinforced material which is self lubricating.

Models: X3 (E83-N) - X5 (E53) 1999-2010


34 43 6 782 755 A

Parking Brake Actuator Gear Kit

This kit contains the parts to repair the parking brake actuator (34 43 6 782 755/ 34 43 2 240 757). Includes two gears, roll pin and press tool.

Models: 7 Series E65, E66, E67, E68 to 12-2011


E39 Headlight Kit

E39 Headlight Adjuster Kit

Halogen or Xenon, this kit includes both male plastic parts that are broken in your headlight and a tool to remove the broken ball in the female side. Good for either left or right sides. Made from 20% glass filled Delrin®.

Models: 5 Series E39 Sept. 00-03


52 10 7 137 499

Z3 Seat Bushing Kit

If your seat bottom has movement front to back, the cause is defective seat bushings. Kit includes eight parts which is enough to fix both seats. This is a permanent repair, made using an Acetal Resin with the trade name of Delrin®. BMW offers a kit that is made with the same original rubber that is prone to fail again.

Models: Z Series 96-02


E36 Green

Recline Seat Gear (Green)

Used on the front passenger’s seat. If you are close to a year break it is always best to look at your old seat gear color before ordering.

Models: 1990-1993.5 (US), 1997.5-2000 (US)


E36 White

Recline Seat Gear (White)

The driver's seat in the US will always have a white recline gear. For non-US vehicles, you will need to remove and look at color of OE gear before ordering. If you are close to a year break it is always best to look at your old seat gear color before ordering.

Models: Driver’s seat – all years (US), Passenger’s seat - 1993.5-1997.5 (US)br>


E36 Pink

Seat Bottom Gear (Pink)

The seat bottom gear will always be pink on driver's and passenger's seat. This gear takes approximately five extra minutes to replace while replacing the recline gear.

Models: All years, driver and passenger seats


Conti Uni-tool Elast

This tool is used to change elastic V-ribbed belts. With the new, Conti Uni-Tool Elast, you now have the correct all-purpose tool readily at hand for nearly all vehicle applications. It makes belt changes fast, easy and fail safe. The old belt can also be removed using the new tool.

For video of this tool in action, click on this link



Magnehelic Pressure Gauge 0-25 millibars


Housing: Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 hour salt spray corrosion test.
Accuracy: ±2% of FS (±3% on -0, -100PA, -125PA, -10MM and ±4% on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C).
Pressure Limits: -20 in Hg. to 15 psig. (-0.677 bar to 1.034 bar); MP option; 35 psig (2.41 bar), HP option; 80 psig (5.52 bar).
Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only. See Overpressure Protection note on Catalog page.
Temperature Limits: 20 to 140°F.* (-6.67 to 60°C).
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Process Connections: 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back.
Weight: 1 lb 2 oz (510 g); MP & HP 2 lb 2 oz (963 g).
Standard Accessories: Two 1/8" NPT plugs for duplicate pressure taps, two 1/8" pipe thread to rubber tubing adapters and three flush mounting adapterswith screws. (Mounting and snap ring retainer substituted for three adapters in MP & HP gage accessories.)




Magnehelic Pressure Gauge 0-50 millibars

Specifications are the same as 2000-25MBAR.




Digital Magnehelic Pressure Gauge 0-25 millibars


Housing Materials: Glass filled plastic.
Accuracy: ±1% FS including linearity, hysteresis and repeatability; ±2% FS for ranges 1" w.c. and below.
Temperature Limits: 0 to 140°F (-18 to 60°C).
Compensated Temperature Limits: 32 to 122°F (0 to 50°C).
Long Term Stability: ±1% FS per year.
Thermal Effect: ±0.05% FS/°F typ.; ±0.10% FS/°F typ. for ranges 1" w.c. and below.
Display: 4-digit LCD (Digits: 0.60"H x 0.33"W).
Display Update: Selectable for 1 second, 10 minutes or update only from button push.
Pressure Limits: Normal and bi-directional ranges 5 in w.c. and lower = 2 psi (13.7 kPa); Normal and bi-directional ranges 10 in w.c. and higher = 11 psi (75 kPa).
Selectable Engineering Units: in w.c., psi, kPa, Pa, mm w.c., mBar, in Hg, mm Hg, FS (0-100% FS).
Power Requirements: 9V battery, included, user replaceable or external power supply 9-24 VDC.
Battery Service Life: Battery life depending on the Display Update setting: 150 hours (typical) if Display Update = 1 second; 9 months (typical) if Display Update = 10 minutes; 1.5 years (typical) if Display Update is disabled. Battery may last up to four times longer when using lithium-based battery ULTRALIFE U9VL-J.
Current Consumption: 5 mA maximum.
Electrical Connections: Removable terminal block for 16 to 26 AWG.
Electrical Entry: Cable gland for 0.114 to 0.250" (2.9 to 6.4 mm) diameter cable.
Process Connections: 1/8" (3 mm) ID tubing.
Enclosure Rating: NEMA 4X (IP66).
