Product
Features & Functions:
● Extensive
vehicle coverage for more than 30 domestic, Asian and European vehicle makes;
● Deep vehicle system
coverage for ALL electronic systems;
● Complete function
capability including live data, ECU programming and so many others;
● Unparalleled OBDII
functionalities–supports ALL 5 OBDII protocols and ALL 9 test modes;
● Automatic Wi-Fi updates
available in new software releases;
● Innovative dual-processor
technology for quicker diagnostics and boot-up;
● The genuine Windows CE
operating system allows for more stable performances, better compatibility
and expandability;
● WIFI internet capability
allows for wireless access throughout the workshop;
● Internet explorer brings
internet resource of your choice at your fingertips
● Advanced USB communication
for faster operation and more accurate diagnostics;
● Automatic Wi-Fi updates
available in new software releases;
● Extremely easy-to-us with
touch-screen operation and intuitive operation;
● Extensive vehicle coverage
for more than 30 domestic, Asian and European vehicle makes;

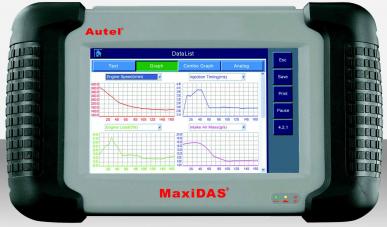

● 7 inch 800 x 480 pixel TFT
color display provides better view of test results, graphs, web pages and etc;
● Unique shop tough
ergonomic design features multi-layered rubber protection and strong housing;
● Intelligent memory of
vehicles for easy and quick diagnosis of tested vehicles;
● Captures, saves and prints
screenshots for convenient troubleshooting;
● Displays live data in
text, graph and analog for easy data review and analysis;
● Records and playbacks live
data to pinpoint troubles of sensors and components;
● Innovative graph merging
for easy and quick detection of intermittent problems;
● Automatic WIFI Data
Logging for quick and accurate technical support and troubleshooting;
● Built-in overvoltage
protection keeps the instrument and vehicle from unwanted damages;
● Creative remote diagnosis
for convenient demonstrationand training;
● Powered by Autel®
Uni-SCANTM technology with no need for extra adaptors or "keys" ;
● Prints out recorded data
any time and anywhere with Wi-Fi printing capability.
Specifications:
Operating System: Windows CE
CPU: ARM9+ARM7 dual
processor
Memory: Max. 4 Gigabyte SD
card
Communication Interface: OBD,
USB，Ethernet
Input Voltage: 8.0-32.0V
power provided via vehicle battery
Power Consumption: 8W
Operating Current: 500mA
Display: Backlit, 7" TFT
(800*480 dpi) color display with touchscreen
Operating Temperature: 0 to
60°C (32 to 140 F°)
Storage Temperature: -10 to
70°C (14 to 158 F°)
Operation: Touchscreen and
one rubber key (ON/OFF)
Printer Interface: Wi-Fi,
USB, Ethernet
Housing: Strong plastic
housing with protective rubber boot
Dimension: 282mm
(11.10")*163mm (6.42")*60mm (2.36")
Weight: approx. 2Kg
(4.41lbs)
Protocols: ISO 9141-2, K/L
lins, flashing code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898
ISO15765-4, Highspeed,
Middlespeed, Lowspeed and Singlewire CAN
