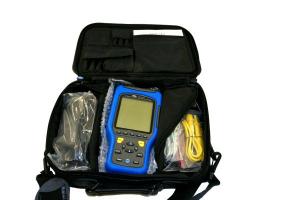

ADL7103

Features Digital Storage Oscilloscope • Sample rate 25 Meg per second • 51 Pre-set waveforms that include sensor, actuator, electrical and ignition patterns • DC to 5 MHz Bandwidth • Sweep rate 1øS to 50 seconds in the scope mode • "Glitch Snare" mode captures, displays and optionally saves abnormal signal patterns in Scope or Component Test modes • Secondary Ignition displays the waveform and includes spark voltage, RPM, burn time and burn voltage • Parade pattern on secondary ignition "Parade" mode • Built in "Help" includes test procedure showing how to connect to the circuit, a sample of the expected waveform, theory of operation and troubleshooting tips. • Optional Diesel accessory to test injector pump timing and RPM Graphing Multimeter • TRMS Graphing Multimeter • 5 seconds to 24 hour sweep rate • AC/DC Volts • Ohms, Continuity, Diodes • Frequency, Duty Cycle, Dwell • Ignition Peak and Burn Volts, Ignition Burn Time • Amps (with optional adapter) • Temperature (with optional adapter) OBDII Code Reader • Active and Pending Codes • Generic and Manufacture Specific Definitions (GM, Ford, Chrysler, Toyota and Honda) • I/M Readiness Monitor Status Indicaiton • Erase DTC's (diagnostic trouble codes) and reset MIL capability •USB interface easily supports future updates (software sold separately)
